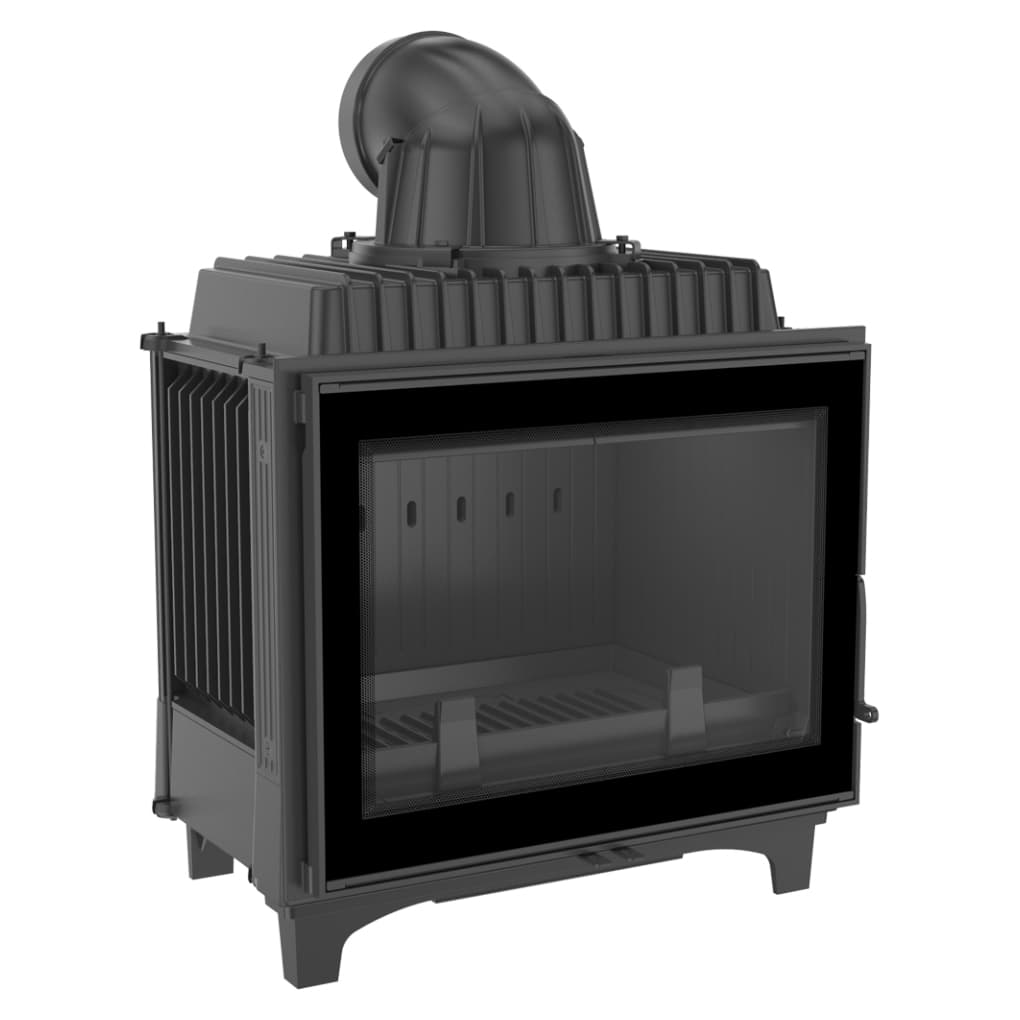

KRATKI FRANEK/12/PF ΙΣΙΟ 12KW ECODESIGN (100-130M2) ΕΝΕΡΓΕΙΑΚΟ ΤΖΑΚΙ ΑΕΡΟΘΕΡΜΟ ΜΑΝΤΕΜΕΝΙΟ

MAXIMUM USE OF ENERGY

Maximum use of heat due to densely spaced radiators and the wall of the insert made of high quality cast iron with a thickness of 8 mm.

Combustion of fuel particles thanks to deflector, which extends the exhaust gas path.

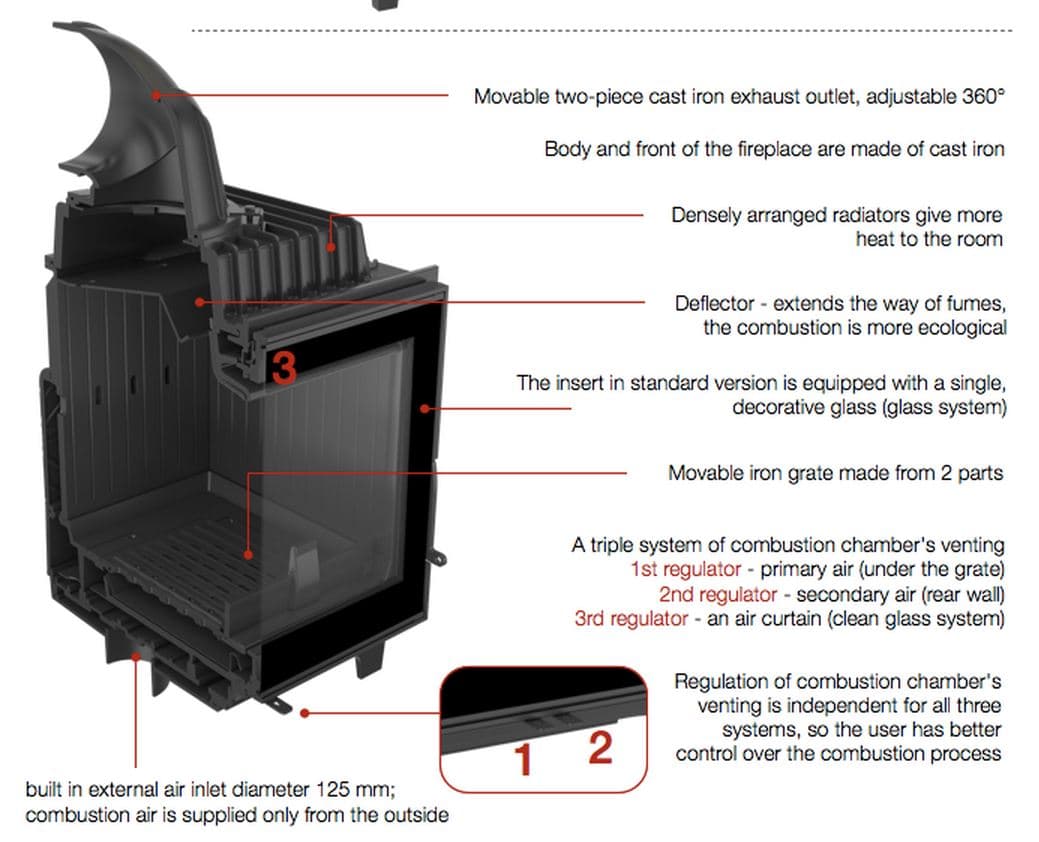

Triple system of combustion chamber's air venting: primary air - secondary air supplied under the grate through holes in a back wall. Additionally clean glass system designed (air curtain).

Manual control over the combustion process carried out by ash tray regulator.

Air supplied from outside only thanks to biult-in an external air inlet fi 125mm.

SAFETY AT THE HIGHEST LEVEL

Decorative fence helps to maintain the tidiness and protects against falling out of wood.

ECOLOGICAL COMBUSTION

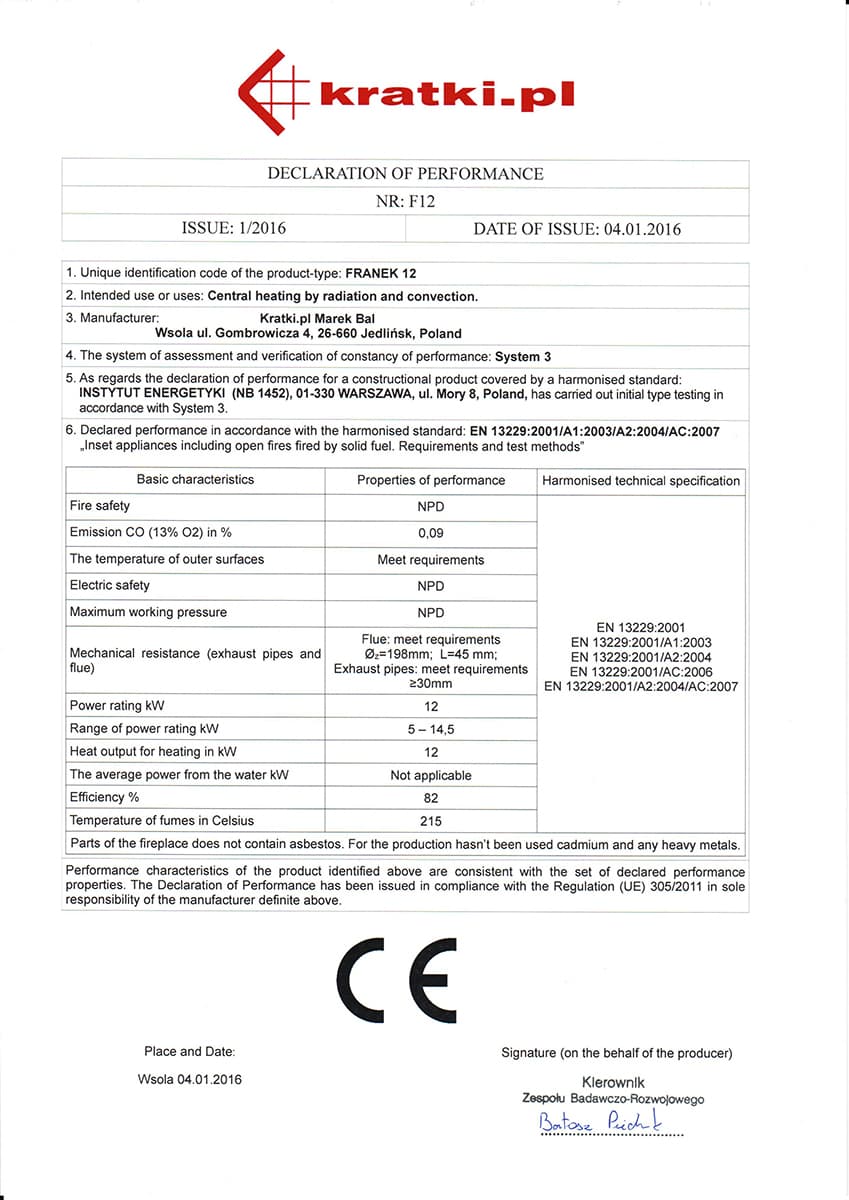

The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.

CONVENIENT TO USE

Large combustion chamber, which allows to load a large quantity of fuel without the need for frequent refills.

Reduced soot deposition through a system of pure glass (air curtain).

Movable, two-piece cast iron fumes outlet with the 360 regulation which can be directed upward or backward.

Movable two-piece cast iron grate.

MODERN DESIGN

Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
