KRATKI NBC/600/400 (A+) 9KW ΤΡΙΩΝ ΟΨΕΩΝ ΣΥΡΟΜΕΝΟ (65-115M2) ΕΝΕΡΓΕΙΑΚΟ ΤΖΑΚΙ ΑΕΡΟΘΕΡΜΟ ΜΕ ΛΕΥΚΑ ΚΕΡΑΜΙΚΑ TERMOTEC

MAXIMUM ENERGY USE

The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.

Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC - heat accumulating material which raises the temperature in the combustion chamber.

Air supplied from outside only thanks to biult-in an external air inlet fi 125mm. Air adjustment with just one regulator which prevents from improper usage.

Triple air system of combustion chamber: primary air - directed to combustion plate; secondary air supplied by the holes located in the back wall. Additionally, the system of air clean glass has been applied (curtain air).



SAFETY AT ITS BEST

Perfect tightness thanks to the solid welds made in a noble gas shielding.

All steel elements are laser cut and bent on CNC bending machines.

Front of insert is equipped with a triple heat-resistant ceramics that can withstand temperatures up to 660°C.



ECOLOGICAL COMBUSTION

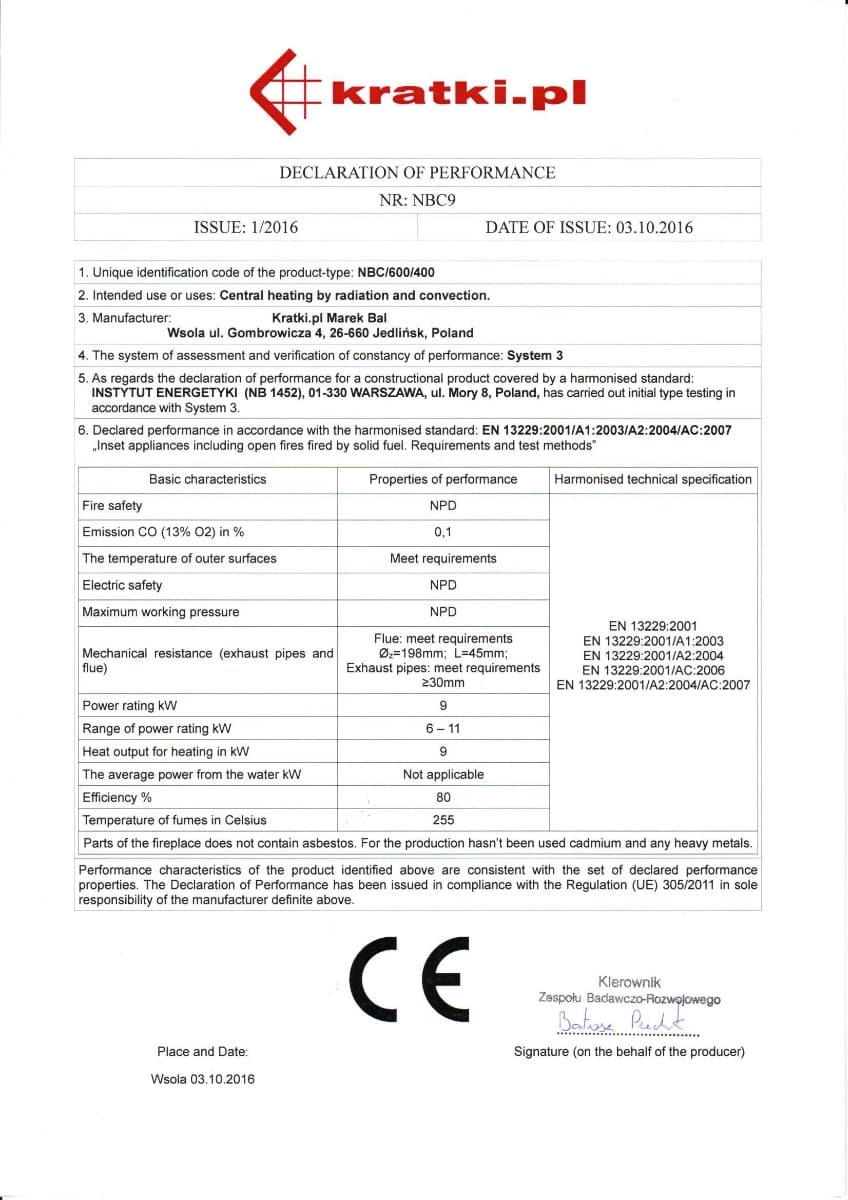

The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.



CONVENIENT TO USE

Movable grate and ashpan enables to clean the insert.

The bottom plate of the insert is significantly reduced relative to the door.

Double door opening system - lift up (Guillotine) and side opening. Lifted door makes loading of wood easier and machanism of side door opening allows to clean the glass.

Reduced soot deposition through a system of pure glass (air curtain).



MODERN DESIGN

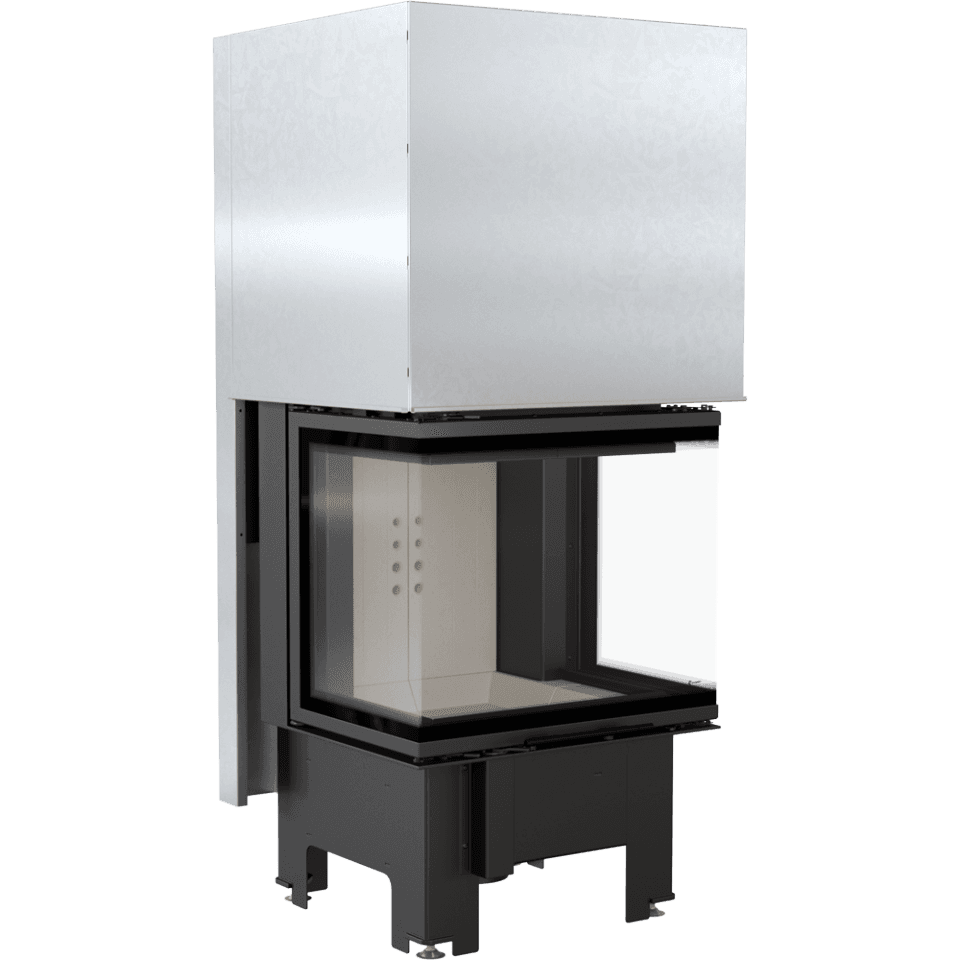

Three-side glazing of fireplace guarantees maximum vision of the fire.

Comfortable and quiet lift-up mechanism simplifies cleaning and service of the insert.

Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
